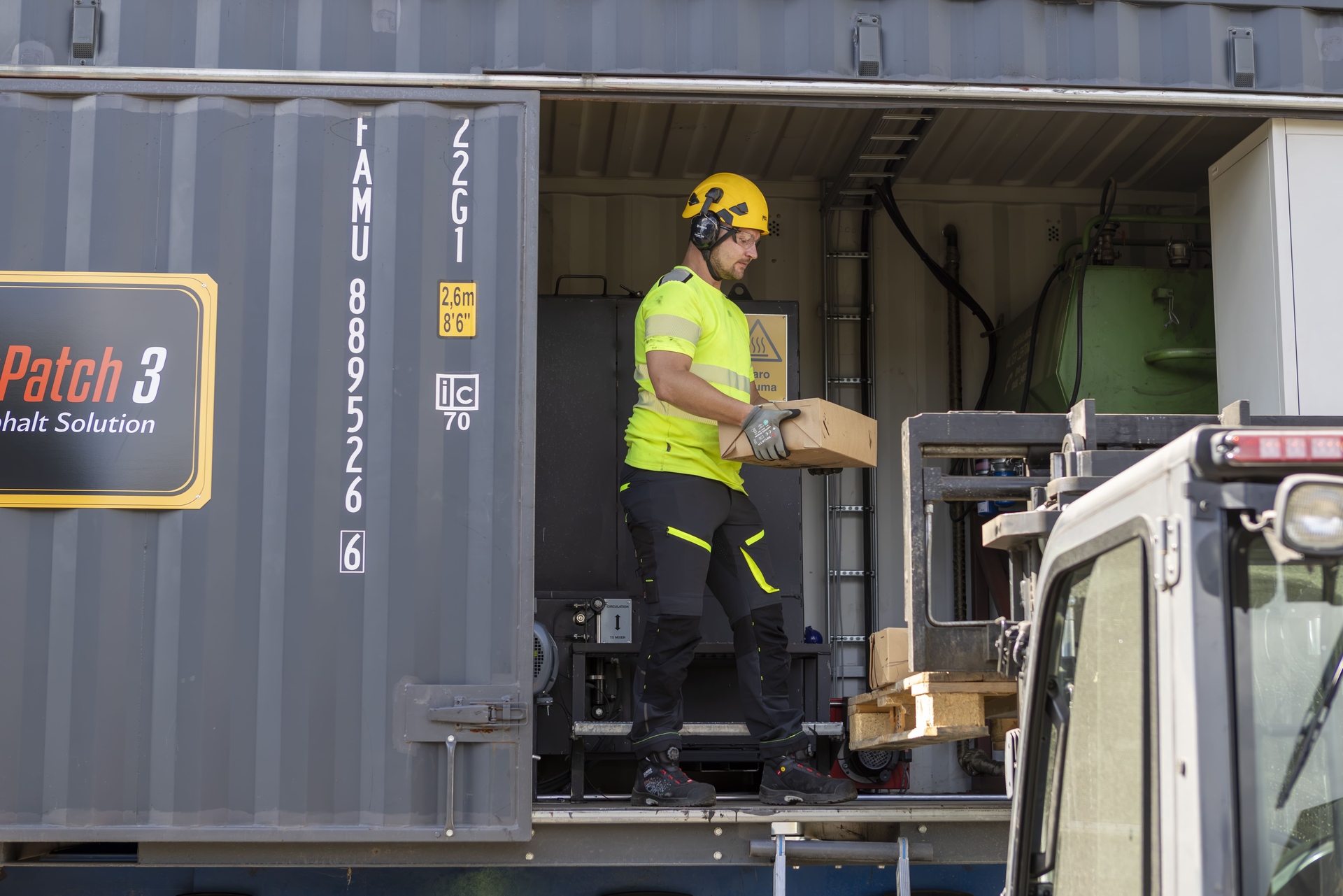

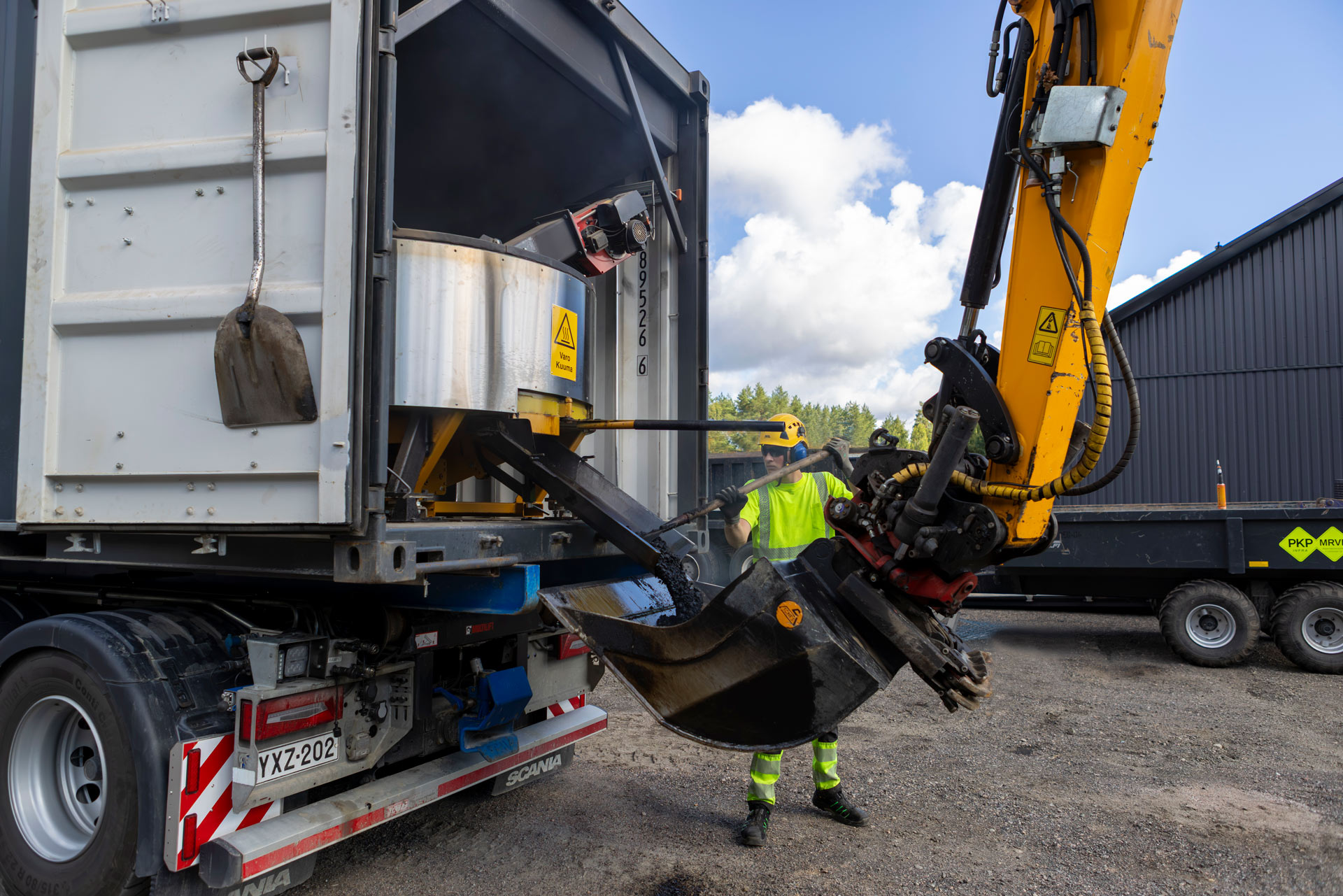

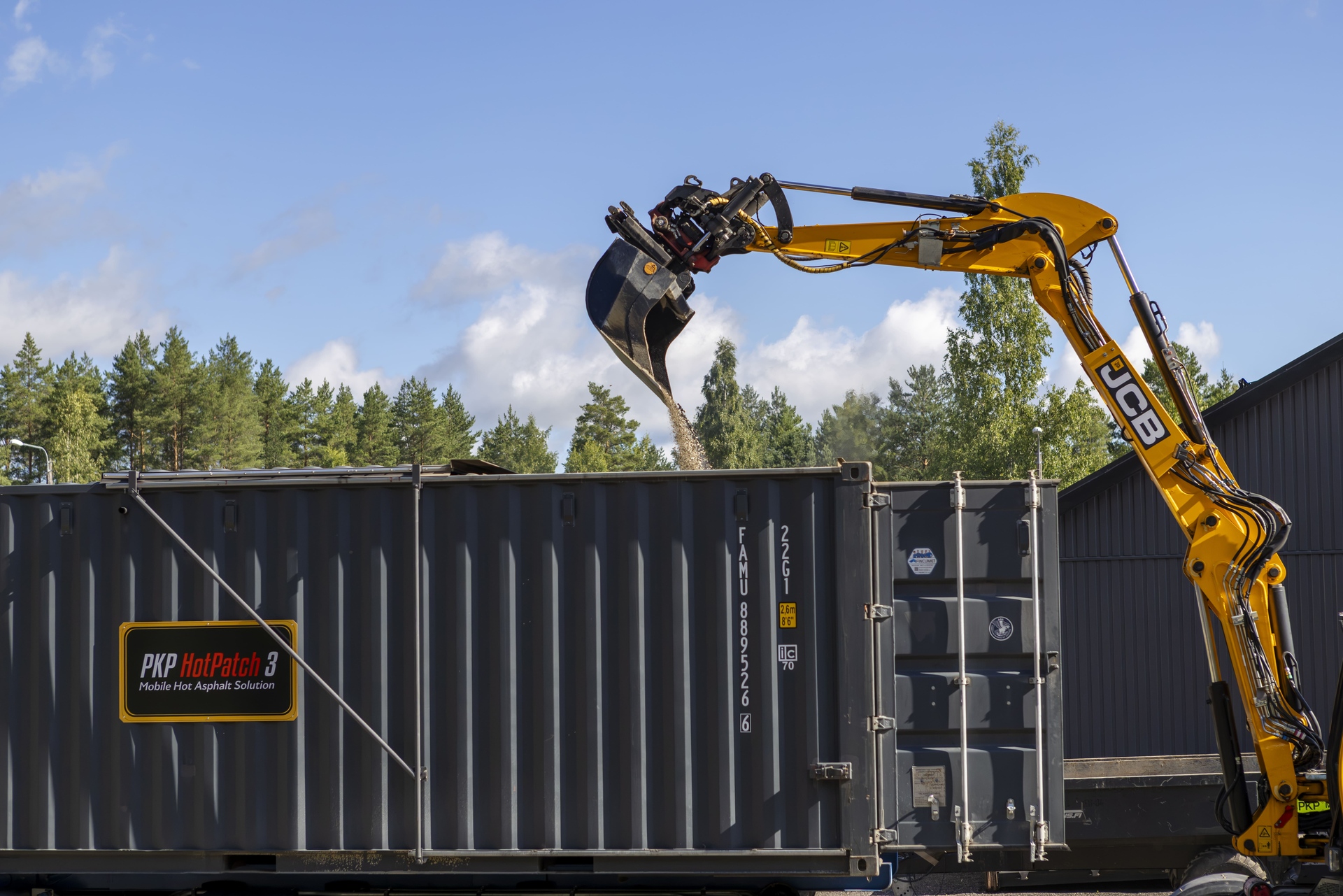

Aggregate and bitumen are loaded into the container.
PKP HotPatch 3

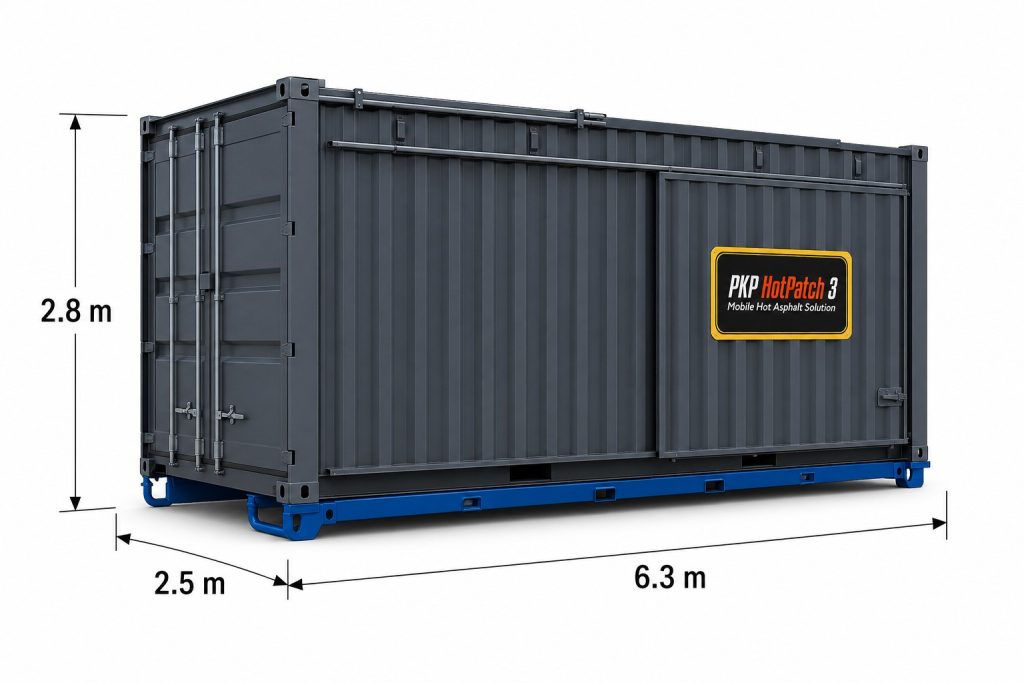

PKP HotPatch 3 is a container-based mobile unit engineered to produce hot-mix asphalt directly at work site or next to the repair. It is the answer wherever conventional asphalt plant logistics are too slow, too costly or simply impractical.
Asphalt repair right where it's needed
PKP HotPatch 3 is a container-based mobile unit engineered to produce hot-mix asphalt directly at work site or next to the repair. It is the answer wherever conventional asphalt plant logistics are too slow, too costly or simply impractical.
The unit has been developed to eliminate the bottlenecks of traditional asphalt logistics: long transport distances, high costs, and dependence on the operating hours or winter closures of fixed asphalt plants. Instead of temporary and low-quality cold patching, repairs are carried out immediately with durable, hot mix.
The unit has been developed to eliminate the bottlenecks of traditional asphalt logistics: long transport distances, high costs, and dependence on the operating hours or winter closures of fixed asphalt plants. Instead of temporary and low-quality cold patching, repairs are carried out immediately with durable, hot mix.
Key Technologies
- Container-based mobile structure
- Aggregate system
- Bitumen heating and circulation
- Mixer
- Weighing / dosing
- Control system

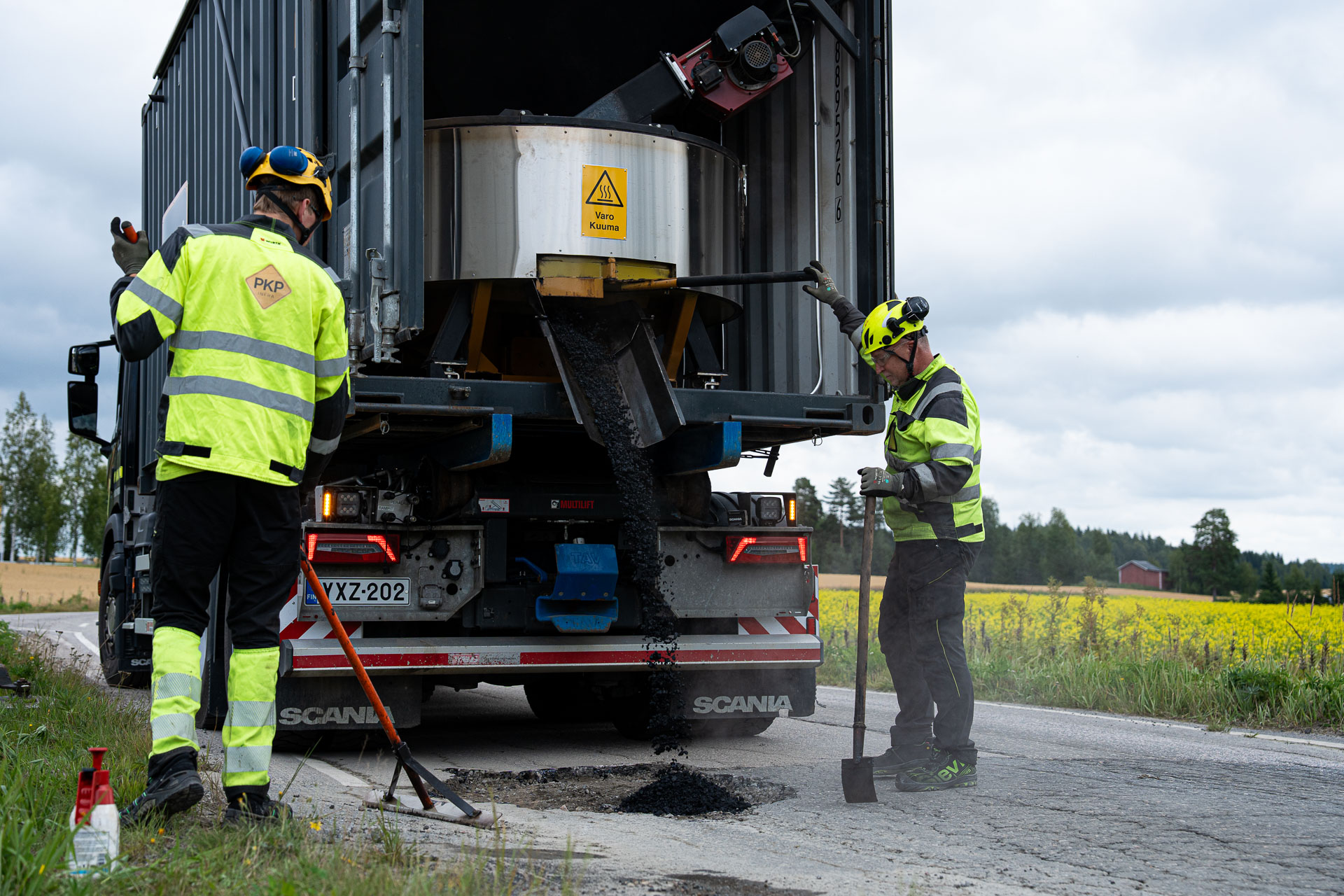

- Hot mix discharge

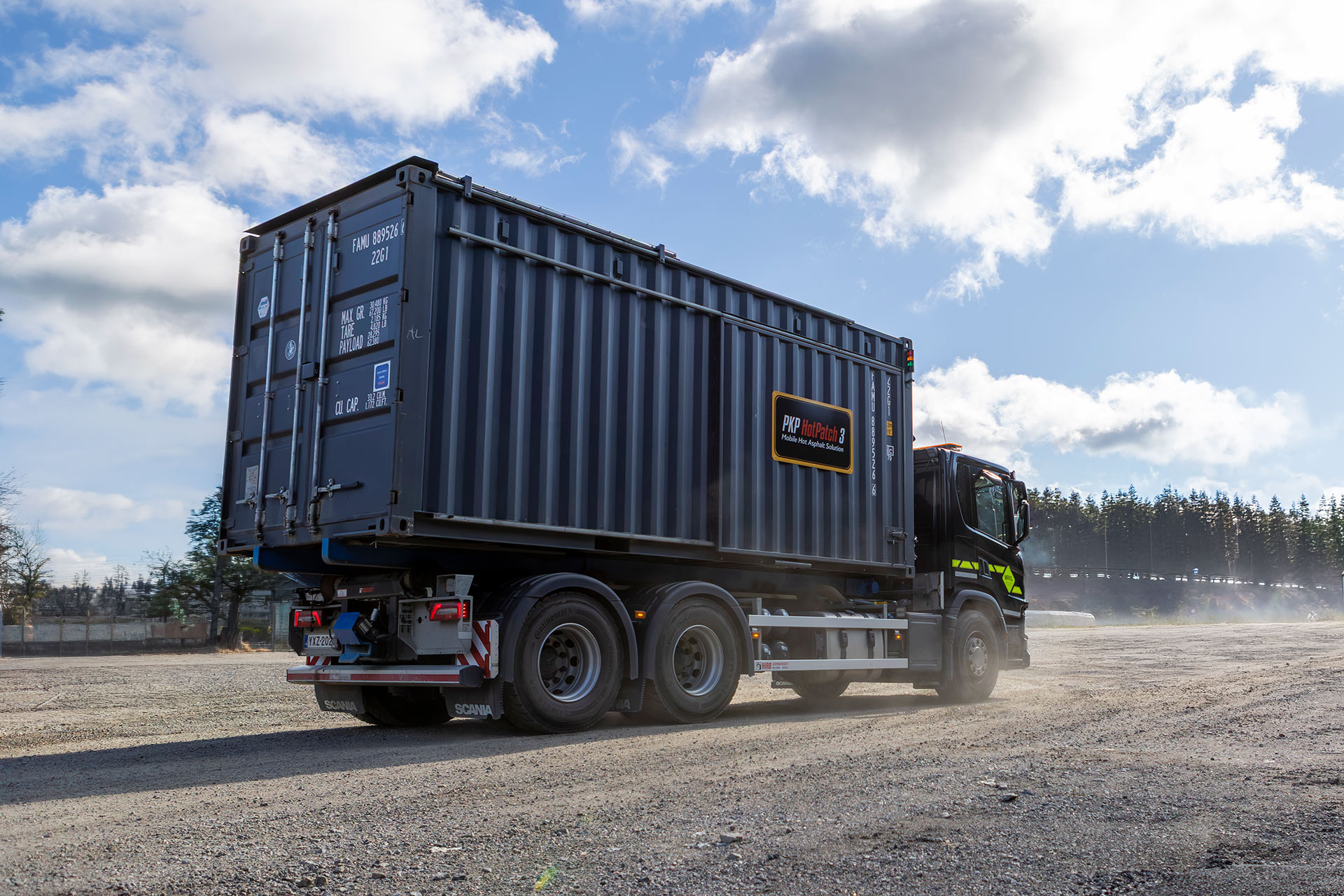

- Transportability and site operation
Applications:
- Road and street repairs
- Airports
- Industrial areas
- Ports and terminals
- Private roads and remote sites
- Critical infrastructure
Engineered for demanding weather including winter conditions.
Key Benefits:
- Hot mix at the repair site – No more dependence on where the nearest asphalt plant is..
- Right-sized for smaller repairs — Enables Produce what the job needs, without ordering a full truckload of asphalt.
- Mobile and flexible solution — Suitable for locations where patching needs vary and distances may be long.
How PKP HotPatch Works
Explore the stages of asphalt patching carried out with the PKP HotPatch unit.
Technical Specifications
Download Data Sheet (PDF)

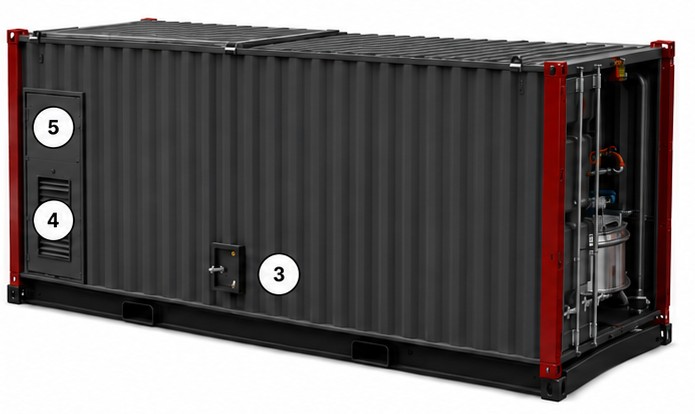

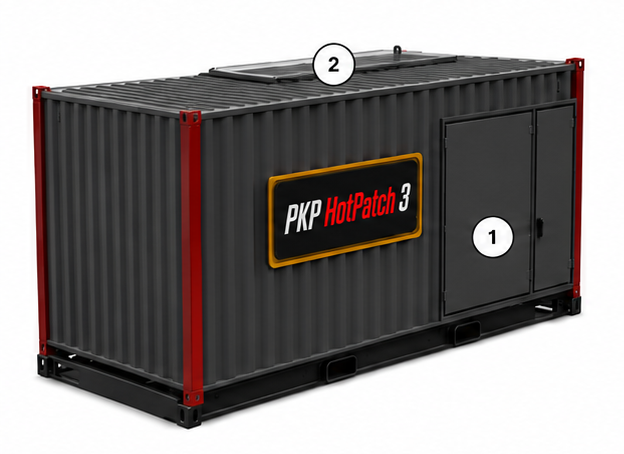

Exterior
| No. | Component | Function |
|---|---|---|
| 1 | Right side | Side door / side service hatch. |
| 2 | Roof | Openable sliding hatch for aggregate loading. |
| 3 | Left side | Hatch providing access to the hot bitumen take-off valve. |
| 4 | Left side | Diesel engine cooling vents. |
| 5 | Left side | Diesel generator service hatch. |

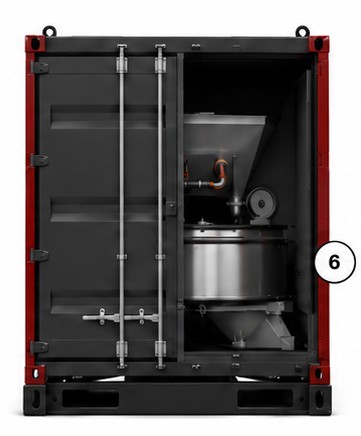

| 6 | Rear | Rear doors and hot asphalt discharge area. |

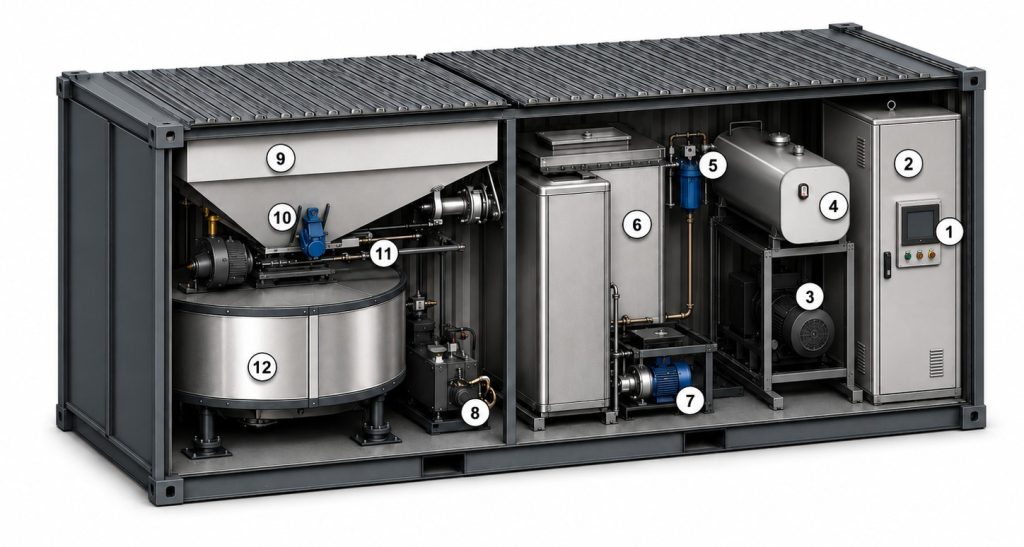

Interior
| No. | Component | Function |
|---|---|---|

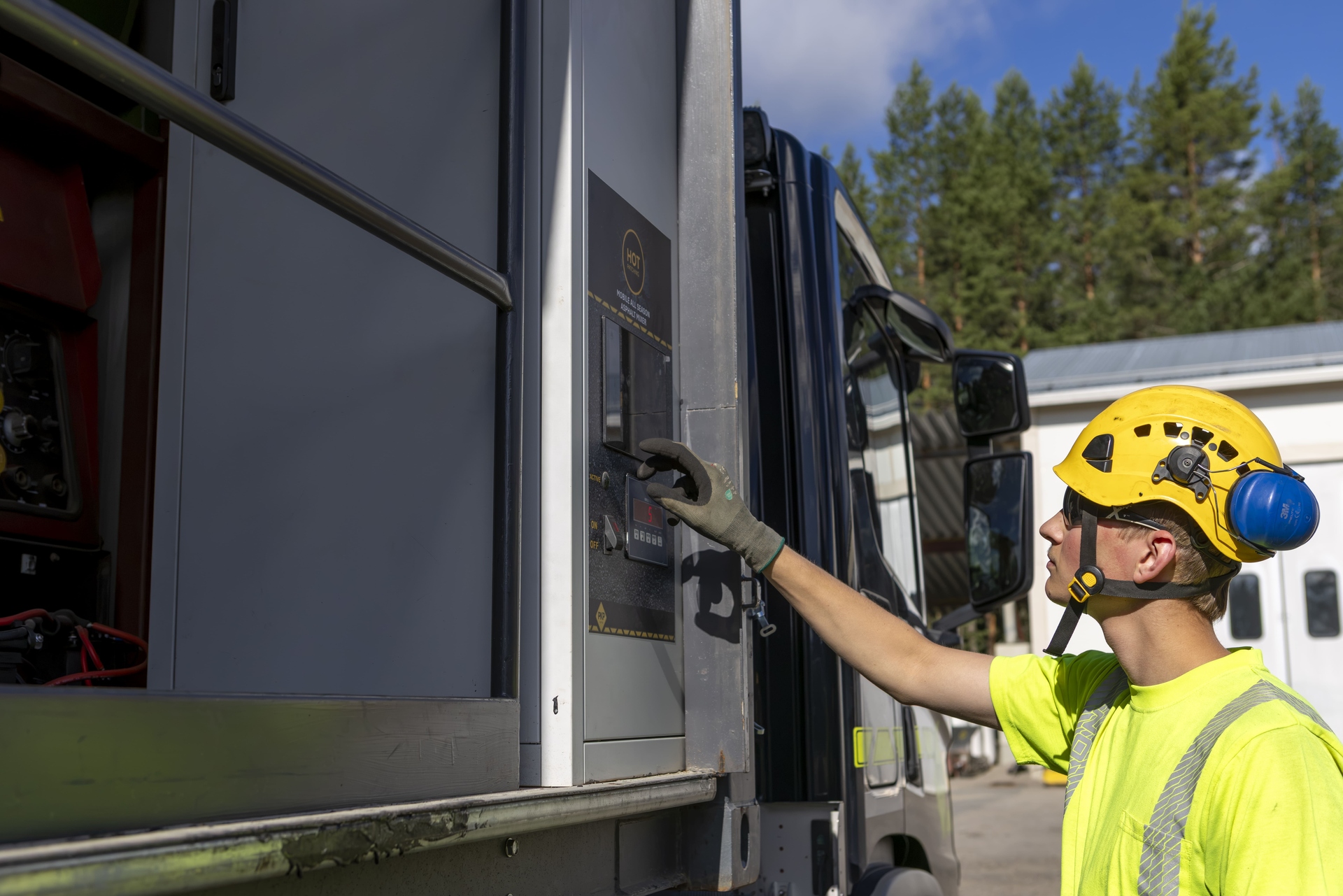

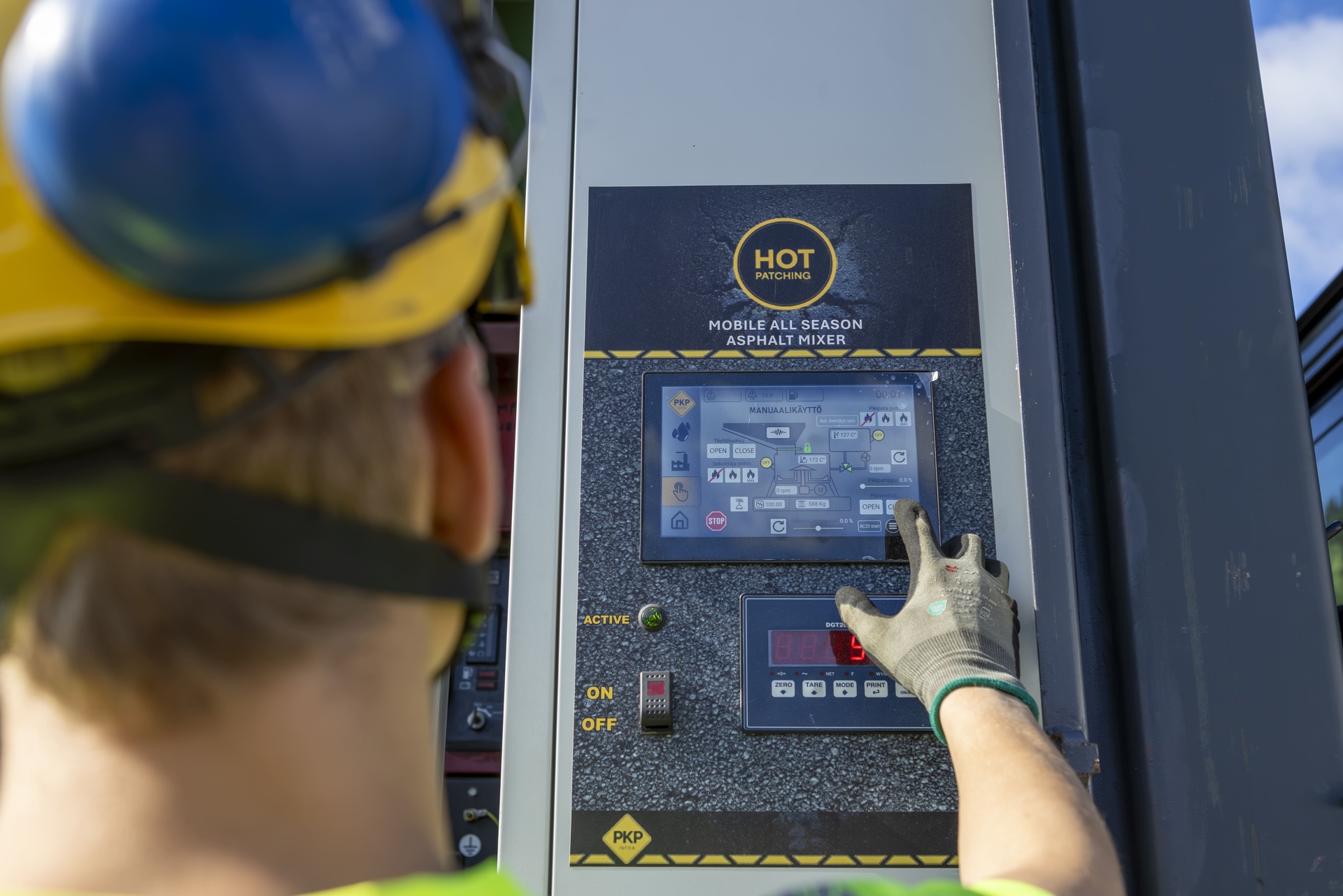

| 1 | Control system user interface | 10” touchscreen main user interface for process control. |
| 2 | Electrical cabinet | Electrical and control system components. |
| 3 | Generator (diesel engine) | Mitsubishi S4L2 diesel engine driving the generator; produces the electrical power required by the unit. |
| 4 | Combined fuel tank | 500-liter tank supplying fuel to the diesel generator and both process burners. |
| 5 | Burner fuel filtration | Filters the fuel before it reaches the burners. |
| 6 | Bitumen boiler | Insulated double-wall steel tank for storing and heating bitumen. |
| 7 | Bitumen pump | Internal gear pump for bitumen recirculation and transfer to the mixer. |
| 8 | Hydraulic power unit | Electrically driven hydraulic power unit. |
| 9 | Aggregate silo | Silo for storing aggregate. |
| 10 | Silo vibrator | Assists aggregate flow out of the silo. |
| 11 | Aggregate feed gate | Hydraulically operated gate controlling aggregate flow from the silo to the mixer. |

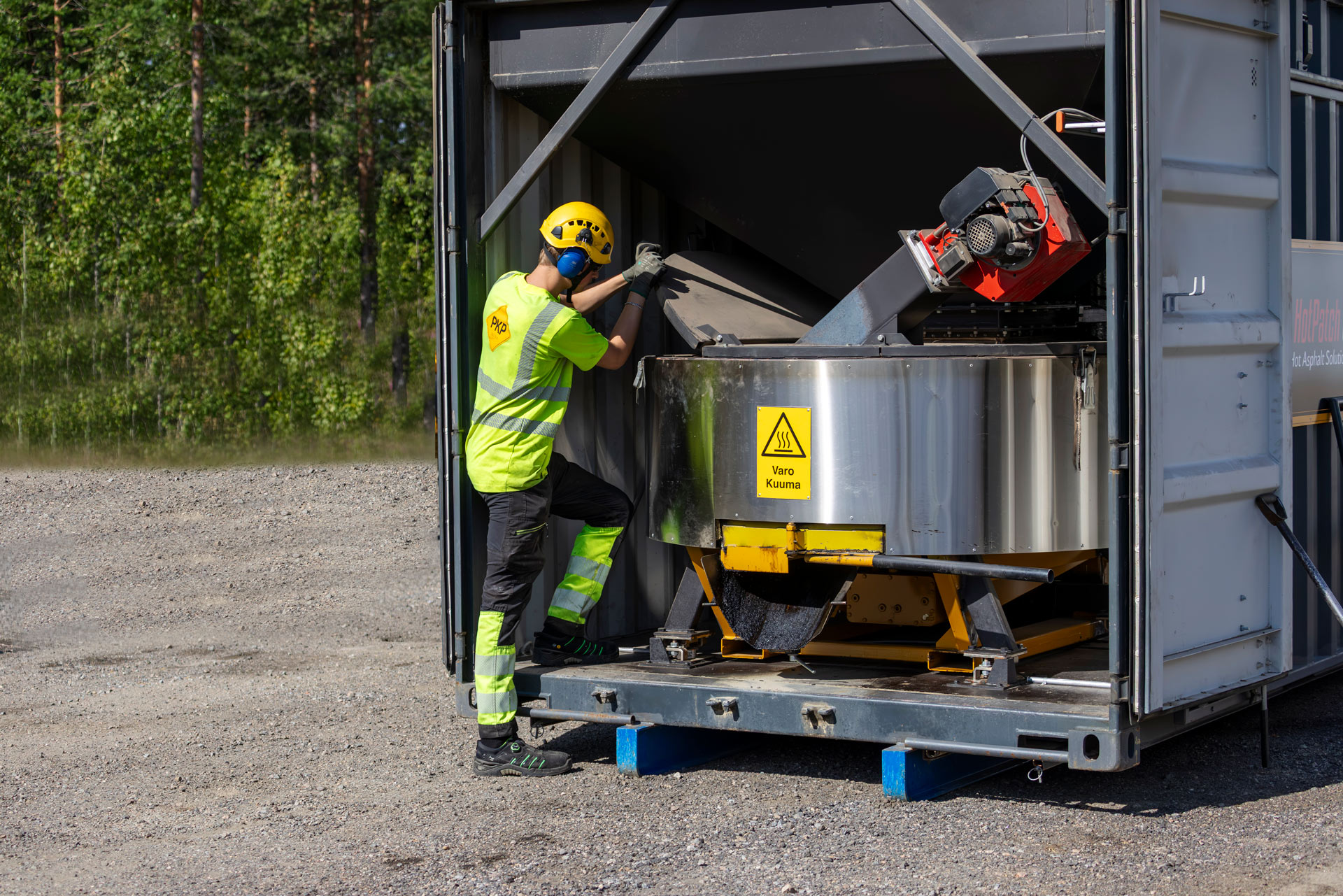

| 12 | Asphalt mixer | Pan mixer for heating the aggregate and mixing the hot asphalt. |
